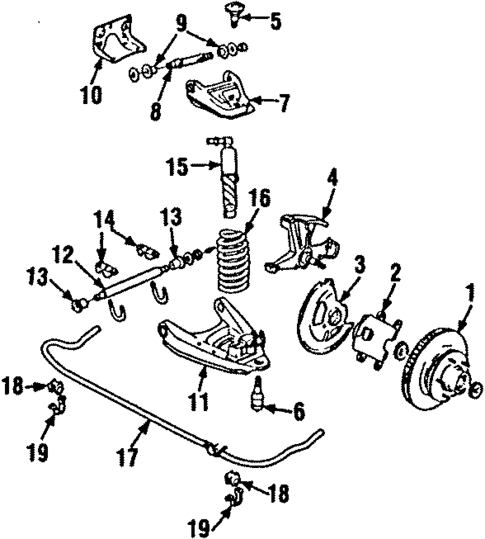

Front Suspension for 1987 Chevrolet Suburban R20
No.
Part # / Description / Price
Price
2
Front Driver Side Disc Brake Caliper Assembly (Friction Ready Non-Coated), Remanufactured 1
GM
GM Positions: Left
Description: Pressure tested to ensure safe and confident braking
Cast iron and aluminum specifications; no extra stress on the brake boosting mounting
Developed without attached brake pads for customization
MSRP $65.76
$36.56
MSRP $65.76
$36.56
2
Front Passenger Side Disc Brake Caliper Assembly (Friction Ready Non-Coated), Remanufactured 1 GM
GM Positions: Right
Description: Pressure tested to ensure safe and confident braking
Cast iron and aluminum specifications; no extra stress on the brake boosting mounting
Developed without attached brake pads for customization
MSRP $73.08
$40.63
MSRP $73.08
$40.63
4
Steering Knuckle GM
GM Positions: Right
Description: 30, without dual rear wheel. Pick-up. 20 series. Right side. 2wd, 3/4 ton. Blazer, Jimmy, Suburban. 20 series. G30, G3500 vans.
4
Steering Knuckle GM
GM Positions: Left
Description: 30, without dual rear wheel. Pick-up. 20 series. Left side. 2wd, 3/4 ton. Blazer, Jimmy, Suburban. 20 series. G30, G3500 vans.
5
Upper Ball Joint GM
GM Positions: Left
Description: 2wd, 3/4 ton. Hydraulic Brakes. G30 vans. Blazer, Jimmy, Suburban. 30 series. Pick-up. 30 series. 10-20, diesel.
6
Lower Ball Joint GM
GM Positions: Right
Description: 2wd, 3/4 ton. G30 vans. Blazer, Jimmy, Suburban. 30 series. Pick-up. 30 series.
7
Upper Control Arm GM
GM Positions: Right
Description: 30, standard. 2wd, 3/4 ton. G30, G3500 vans. Without hd. Right side. 30, all. 10-20, diesel.
7
Upper Control Arm GM
GM Positions: Left
Description: 30, standard. 2wd, 3/4 ton. G30, G3500 vans. Without hd. Left side. 30, all. 10-20, diesel. Heavy Duty Suspension.
8
Upper Control Arm Shaft GM
GM Description: All. 30 series. 2wd, 3/4 ton. G30, G3500. Shaft. G30 vans. All models. 3500 series.
9
Upper Shaft Bushing GM
GM Description: Bushings. All. 30 series. 2wd, 3/4 ton. G30 vans. All models. 3500 series.
MSRP $41.79
$27.15
MSRP $41.79
$27.15
12
Lower Control Arm Shaft GM
GM Description: 30, standard. Shaft. All. 30 series. Without heavy duty. 2wd, 3/4 ton. All models. 3500 series. G30, G3500 vans.
13
Lower Control Arm Bushing GM
GM Description: Bushings. All. 30 series. 2wd, 3/4 ton. G30 vans. All models. 3500 series.
15
Suspension Shock Absorber 2 GM
GM Positions: Left
Description: 2wd, 1/2 & 3/4. 2wd, 1/2 ton. Exc.I-Beam Suspension. Exc.Motor Home. 3,050 Lbs. Front Axle. 2wd, standard.
18
Suspension Stabilizer Bar Bushing GM
GM Description: To frame. 2wd, 26.92mm. 2wd, standard. S-series. Pick-up. Without sport chassis pkg. 2WD. with Sport package.
18
Suspension Stabilizer Shaft Insulator GM
GM Description: 2wd, 31.75mm. Outer. All models. To Strut Bracket. With hd. Park Avenue. 1992-94. Without sport suspension. This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors
19
Suspension Stabilizer Shaft Insulator Clamp GM
GM Description: 2WD. without Sport package. Stabilizer bar,clamp. Helps secure the stabilizer bar bushing to your vehicle's suspension
This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors
MSRP $8.96
$6.05
MSRP $8.96
$6.05
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
2 This part contains hazardous materials. Extra shipping costs apply.
No.
Part # / Description / Price
Price
1
Rotor GM
GM Positions: Left
Description: 4wd, 3/4 ton. Blazer, Jimmy, Suburban. 4wd. 20 series. Pick-up. 4wd. 20 series. 2wd.
2
Acdelcoâ„¢ Disc Brake Caliper GM
GM Positions: Left
Description: 30. 13 x 2 1/2" Brakes. Vendor:moraine. 4wd, 3/4 ton. G30, G3500 vans. Left side. 2wd, with vacuum power.
2
Front Passenger Side Disc Brake Caliper Assembly (Friction Ready Non-Coated), Remanufactured 1 GM
GM Positions: Right
Description: 30. 4wd, 3/4 ton. G30, G3500 vans. Right side. 13 x 2 1/2" Brakes. Vendor:moraine. 2wd, with vacuum power. Pressure tested to ensure safe and confident braking
Cast iron and aluminum specifications; no extra stress on the brake boosting mounting
Developed without attached brake pads for customization
MSRP $73.47
$40.86
MSRP $73.47
$40.86
2
Front Driver Side Disc Brake Caliper Assembly (Friction Ready Non-Coated), Remanufactured 1 GM
GM Positions: Left
Description: 30. 4wd, 3/4 ton. G30, G3500 vans. Left side. 13 x 2 1/2" Brakes. Vendor:moraine. 2wd, with vacuum power. Pressure tested to ensure safe and confident braking
Cast iron and aluminum specifications; no extra stress on the brake boosting mounting
Developed without attached brake pads for customization
MSRP $89.79
$49.93
MSRP $89.79
$49.93
2
Acdelcoâ„¢ Disc Brake Caliper GM
GM Positions: Right
Description: 30. 13 x 2 1/2" Brakes. Vendor:moraine. 4wd, 3/4 ton. G30, G3500 vans. Right side. 2wd, with vacuum power. 11.15 x 2.75" Rear Brakes.
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
Related Parts
Part # / Description / Price
Price
Lower Shaft GM
GM Description: Shaft. All. 10-20 series. Left side. 10-20, gas. All models. 1500-2500 series. G10-20, G1500-2500 vans.
Lower Shaft GM
GM Description: Shaft. All. 10-20 series. Right side. 10-20, gas. All models. 1500-2500 series. G10-20, G1500-2500 vans.
Lower Control Arm GM
GM Description: Pick-up. 20 series. Left side. Pick-up. 30 series. Without heavy duty. Blazer, Jimmy, Suburban. 30 series. Blazer, Jimmy, Suburban. 20 series.
Lower Control Arm GM
GM Description: Pick-up. 20 series. Right side. Blazer, Jimmy, Suburban. 30 series. Without heavy duty. Blazer, Jimmy, Suburban. 20 series.
Front Driver Side Hydraulic Brake Hose Assembly GM
GM Positions: Left
Description: 2wd, 3/4 ton. Includes OE features such as brackets, grommets, molded plastic guards, and wire clips to provide correct fit and easy installation
Premium brass fittings provide an excellent hydraulic seal
Performs to standards required by OE manufacturers ensuring optimal protection, service life, and safety
MSRP $38.55
$23.12
MSRP $38.55
$23.12
Stabilizer Bar Bracket GM
GM Positions: Left
Description: 4wd 1/2 & 3/4 ton, 1/2 & 3/4 ton, upper. 4wd one ton, 1 ton, upper. 4wd, to frame.
Stabilizer Bar Bracket GM
GM Positions: Right
Description: 4wd 1/2 & 3/4 ton, 1/2 & 3/4 ton, upper. 4wd one ton, 1 ton, upper. 4wd, to frame.
Lower Control Arm Shaft GM
GM Description: 30, hd. 2wd, hd suspension. Shaft. All. 30 series. With heavy duty. Left side. G30. All models. 3500 series.
Lower Control Arm Shaft GM
GM Description: 30, hd. 2wd, hd suspension. Shaft. All. 30 series. With heavy duty. Right side. G30. All models. 3500 series.
Suspension Shock Absorber 2 GM
GM Positions: Left
Description: All. Standard. 4wd, hd. Color-Silver. Vendor:acdelco. Vendor #530-202. 4wd, with 4 shocks, outer. JTEC Engine Control Module.
Ball Joint GM
GM Description: Pick-up. 10-20 series. 2wd, 1/2 ton. G10-20, G1500-2500 vans. Blazer, Jimmy, Suburban. 10-20 series. 4wd. 2wd, lower.
2 This part contains hazardous materials. Extra shipping costs apply.
