Seat Assembly for 1996 Pontiac Firebird

Seat Assembly for 1996 Pontiac Firebird #0

Seat Assembly for 1996 Pontiac Firebird #1

Seat Assembly for 1996 Pontiac Firebird #0

1

1

10

10

11

11

12

12

13

13

14

14

15

15

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

No.

Part # / Description / Price

Price

1

16748363 - Body: Frame for GM Image

Seat Back Frame

GM

Positions: Left

Description: 1993-96 without european style, upper. 1993-02 with european style.

1

16748362 - Body: Frame for GM Image

Seat Back Frame

GM

Positions: Right

Description: 1993-96 without european style, upper. 1993-02 with european style.

2

16718669 - Body: Frame for GM Image

Frame

GM

Positions: Right

Description: Driver seat. Passenger seat. 1993-02 with european style. 1993-96 without european style, lower.

3

16805461 - Body: Recline Adjuster for GM Image

Recline Adjuster

GM

Positions: Left

Description: Driver. 1993-96 without european style.

3

16805460 - Body: Recline Adjuster for GM Image

Recline Adjuster

GM

Positions: Right

Description: Passenger. 1993-96 without european style.

4

16739034 - Body: Cushion for GM Image

Seat Back Pad

GM

Positions: Right

Description: 1993-96 without european style, upper.

4

16739035 - Body: Cushion for GM Image

Seat Back Pad

GM

Positions: Left

Description: 1993-96 without european style, upper.

5

16794382 - Body: Cushion for GM Image

Cushion

GM

Positions: Left

Description: 1993-96 without european style, lower.

6

16730806 - Body: Cover for GM Image

Cover

GM

Notes: PARTS: Order by color.

Description: 1993-96 without european style, upper front.

7

16731465 - Body: Cover for GM Image

Cover

GM

Positions: Left

Notes: PARTS: Order by color.

Description: 1993-96 without european style, rear, upper.

7

16731464 - Body: Cover for GM Image

Cover

GM

Positions: Right

Notes: PARTS: Order by color.

Description: 1993-96 without european style, rear, upper.

8

16739525 - Body: Cover for GM Image

Cover

GM

Notes: PARTS: Order by color.

Description: 1993-96 without european style, rear, lower.

9

16731451 - Body: Cover for GM Image

Cover

GM

Notes: PARTS: Order by color.

Description: 1993-96 without european style, map pocket net, rear.

10

16796795 - Body: Cover for GM Image

Cover

GM

Notes: PARTS: Order by color.

Description: 1993-96 without european style, lower.

11

16730857 - Body: Cover for GM Image

Cover

GM

Positions: Left

Notes: PARTS: Order by color.

Description: 1993-96 without european style, recline adjuster.

11

16730856 - Body: Cover for GM Image

Cover

GM

Positions: Right

Notes: PARTS: Order by color.

Description: 1993-96 without european style, recline adjuster.

12

16731459 - Body: Handle for GM Image

Handle

GM

Positions: Left

Notes: PARTS: Order by color.

Description: 1993-96 without european style.

12

16731458 - Body: Handle for GM Image

Handle

GM

Positions: Right

Notes: PARTS: Order by color.

Description: 1993-96 without european style.

13

16729517 - Body: Support for GM Image

Support

GM

Positions: Left

Description: 1993-96 without european style, inner.

13

16729516 - Body: Support for GM Image

Support

GM

Positions: Right

Description: 1993-96 without european style, inner.

14

16729507 - Body: Support for GM Image

Support

GM

Positions: Left

Description: 1993-96 without european style, outer.

14

16729506 - Body: Support for GM Image

Support

GM

Positions: Right

Description: 1993-96 without european style, outer.

15

16731377 - Body: Headrest for GM Image

Headrest

GM

Positions: Left

Description: 1993-96 without european style.

15

16731376 - Body: Headrest for GM Image

Headrest

GM

Positions: Right

Description: 1993-96 without european style.

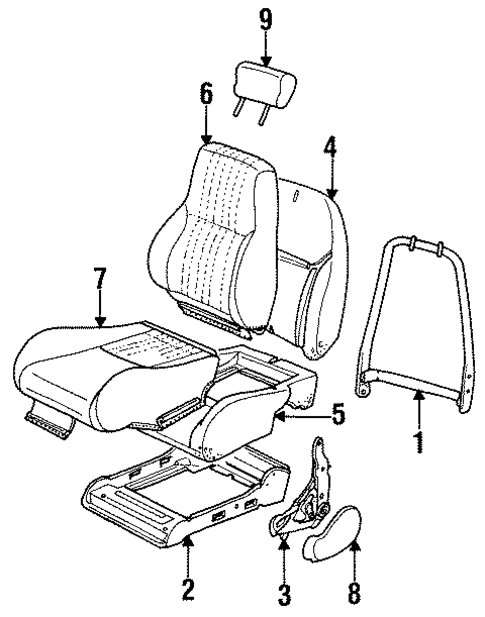

Seat Assembly for 1996 Pontiac Firebird #1

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

No.

Part # / Description / Price

Price

1

16748362 - Body: Seat Back Frame for GM Image

Seat Back Frame

GM

Positions: Right

Description: 1993-96 without european style, upper. 1993-02 with european style.

1

16748363 - Body: Seat Back Frame for GM Image

Seat Back Frame

GM

Positions: Left

Description: 1993-96 without european style, upper. 1993-02 with european style.

2

16718669 - Body: Seat Frame for GM Image

Frame

GM

Positions: Right

Description: Driver seat. Passenger seat. 1993-02 with european style. 1993-96 without european style, lower.

3

16805463 - Body: Recline Adjuster for GM Image

Recline Adjuster

GM

Positions: Left

Notes: PARTS: Order by description.

Description: 1993-02 with european style.

3

16805462 - Body: Recline Adjuster for GM Image

Recline Adjuster

GM

Positions: Right

Notes: PARTS: Order by description.

Description: 1993-02 with european style.

4

17908802 - Body: Seat Back Pad for GM Image

Seat Back Pad

GM

Positions: Left

Description: 1993-02 with european style.

5

16729508 - Body: Seat Cushion Pad for GM Image

Seat Cushion Pad

GM

Positions: Left

Description: 1993-02 with european style.

6

16730236 - Body: Seat Back Cover for GM Image

Seat Back Cover

GM

Positions: Left

Notes: PARTS: Order by description.

Description: 1993-02 with european style.

7

16780029 - Body: Seat Cover for GM Image

Seat Cover

GM

Positions: Left

Notes: PARTS: Order by description.

Description: 1993-02 with european style.

8

22568922 - Body: Recline Cover for GM Image

Cover

GM

Positions: Left

Notes: PARTS: Order by description.

Description: Manual. 1993-02 with european style. Driver seat, with convertible.

8

22568921 - Body: Recline Cover for GM Image

Recline Cover

GM

Positions: Right

Notes: PARTS: Order by description.

Description: Manual. Passenger. 1993-02 with european style.

9

16789703 - Body: Headrest for GM Image

Headrest

GM

Positions: Left

Notes: PARTS: Order by description.

Description: 1993-02 with european style.
