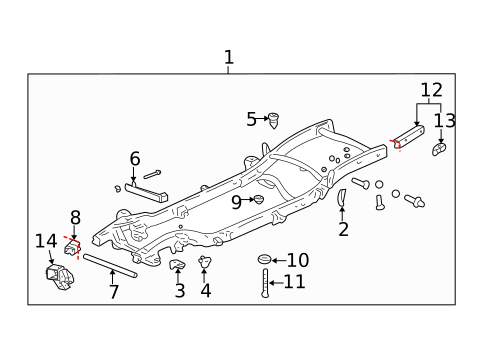

Frame & Components for 2002 Chevrolet Avalanche 2500
No.
Part # / Description / Price
Price
1
Chassis Frame with Brackets, Crossmembers, Mounts, Caps, Brace, Bumpers, and Extensions
GM
GM Description: 4wd, 1500. 4wd, 2500. Provides the supporting structure for your vehicle
This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors
Collision parts are designed to help promote proper and safe repair
4
Suspension Control Arm Bumper GM
GM Notes: PARTS: Part included with frame assembly.
Description: 4wd, front lwr cntrl arm. 2WD. front lwr cntrl arm.
7
Front Crossmember GM
GM Description: 1/2 ton 2wd. 2wd, 1500. 4wd. Front c'member. Helps strengthen and support your vehicle's frame
This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors
MSRP $303.43
$200.70
MSRP $303.43
$200.70
8
Front Frame Extension Cap GM
GM Positions: Left
Notes: PARTS: Part included with frame assembly.
Description: 4wd, 1500 series. 2wd, 1500 series. 1/2 ton 4wd. Rail end. This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors
8
Rail End GM
GM Positions: Right
Notes: PARTS: Part included with frame assembly.
Description: 2wd, 1500 series. 4wd, 1500 series.
9

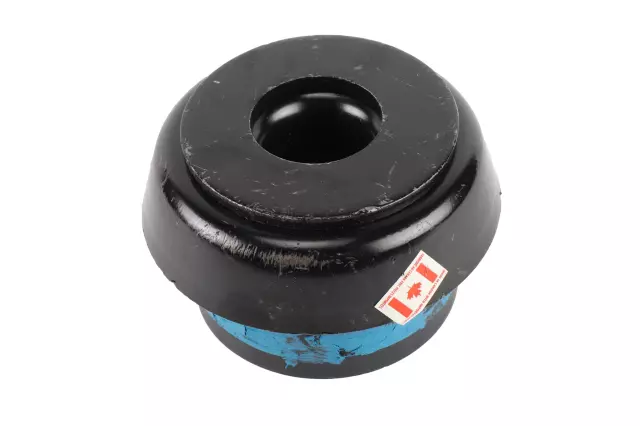

Body Mount Cushion GM
GM Description: 2wd, 1500 series, body, upper. 2wd, 2500 series, body, upper. 4WD. 2nd design, upper #2. 2WD. 2nd design, upper #2.
MSRP $43.03
$29.55
MSRP $43.03
$29.55
11
MSRP $54.75
$35.59
12

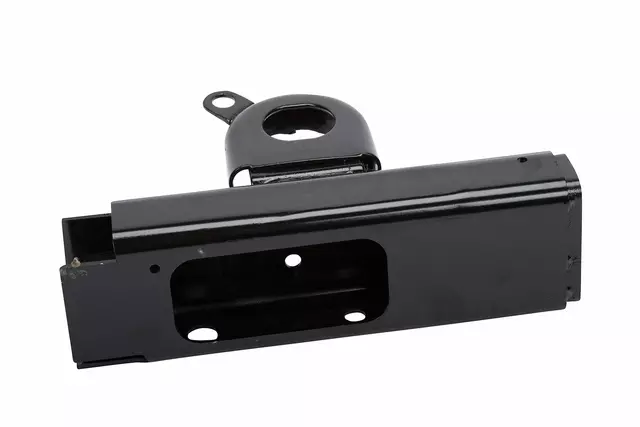

Passenger Side Rail Extension GM
GM Positions: Right
Notes: PARTS: Part included with frame assembly.
Description: 4wd, 1500 series. 2wd. This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors
12

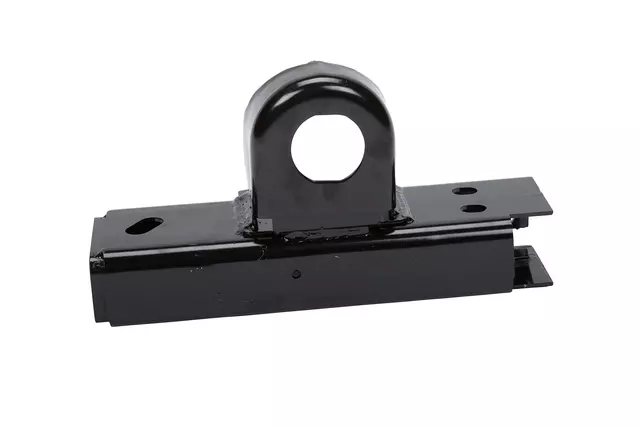

Driver Side Rail Extension GM
GM Positions: Left
Notes: PARTS: Part included with frame assembly.
Description: 4wd, 1500 series. 2wd. This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors
13
Rail Extension Mount GM
GM Positions: Left
Notes: PARTS: Part included with rail extension.
Description: 4wd, 1500 series. 2wd.
15
Passenger Side Front Tow Hook GM
GM Positions: Right
Notes: PARTS: Part included with frame assembly.
Description: 2wd 3/4 ton. 3/4 ton 4wd. 4wd, 2500. 1999-02 gmc without c3 & denali. 3/4, 1 ton. This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors
15
Front Driver Side Tow Hook GM
GM Positions: Left
Notes: PARTS: Part included with frame assembly.
Description: 2wd 3/4 ton. 3/4 ton 4wd. 4wd, 2500. 1999-02 gmc without c3 & denali. 3/4, 1 ton. This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors
MSRP $160.56
$107.36
MSRP $160.56
$107.36
No.
Part # / Description / Price
Price
3
Driver Side Radiator Side Mount Bracket GM
GM Positions: Left
Notes: PARTS: Part included with frame assembly.
Description: 4wd, 1500 series, side mount bracket. 2wd, 1500 series, radiator. 2WD. radiator support. 4.8, 5.3 & 6.0L. 1/2 ton without crew cab. 4WD. radiator support. Helps align and secure your vehicle's radiator mount
This GM Genuine Part is designed, engineered, an ...
3
Radiator Support Bracket GM
GM Positions: Right
Notes: PARTS: Part included with frame assembly.
Description: 4wd, 1500 series, side mount bracket. 2wd, 1500 series, radiator. 2wd, 2500 series, radiator. 2WD. radiator support.
4
Suspension Control Arm Bumper GM
GM Positions: Left
Notes: PARTS: Part included with frame assembly.
Description: 4wd, front lwr cntrl arm. 2WD. front lwr cntrl arm.
6
Support Brace GM
GM Notes: PARTS: Part included with frame assembly.
Description: 2WD 3/4 TON. front lwr cntrl arm. 2wd, front lwr cntrl arm, 2500.
6
Support Brace GM
GM Notes: PARTS: Part included with frame assembly.
Description: 2wd, front lwr cntrl arm. 1/2 TON 4WD. front lwr cntrl arm.
7
Front Cross-Member GM
GM Notes: PARTS: Part included with frame assembly.
Description: 4wd, 2500. 3/4 ton 4wd. 2wd 3/4 ton. 2wd, 2500.
$95.32
$95.32
10
Lower Body Mount Cushion GM
GM Description: Helps dampen the vibrations between your vehicle's body and frame connection
Made of shock absorbing material
This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors
Collision parts are designed to help promote proper and safe repair
MSRP $65.25
$44.81
MSRP $65.25
$44.81
14

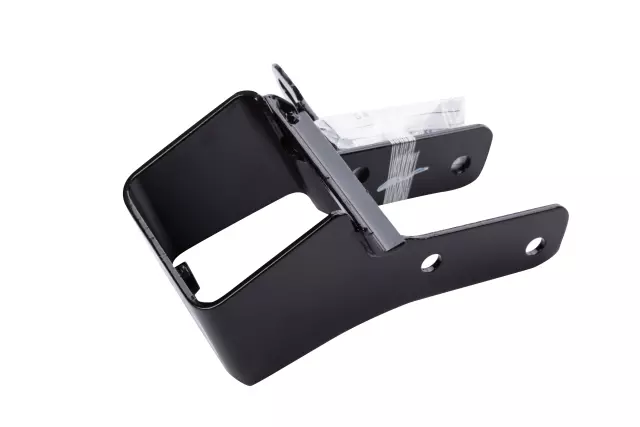

Passenger Side Front Bumper Impact Bar Bracket GM
GM Positions: Right
Notes: PARTS: Part included with frame assembly.
Description: 2wd, 2500 series. 4wd, 2500. 1999-02 chevrolet. 3/4, 1 ton. 1999-02 gmc without c3 & denali. 3/4, 1 ton. Helps align and secure your vehicle's bumper impact bar
This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors
MSRP $185.95
$123.00
MSRP $185.95
$123.00
14

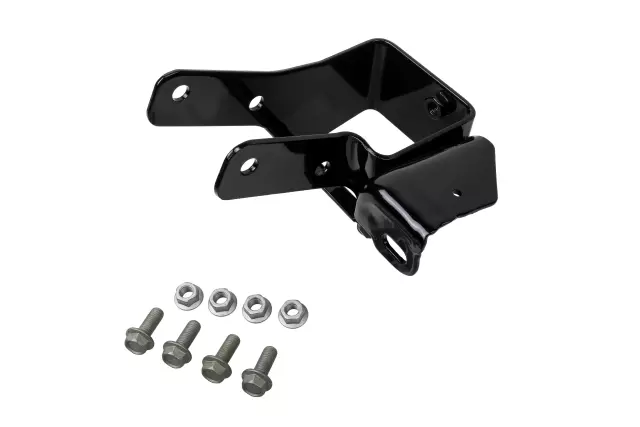

Front Driver Side Bumper Impact Bar Bracket with Bolt GM
GM Positions: Left
Notes: PARTS: Part included with frame assembly.
Description: 4wd, 2500. 1999-02 chevrolet. 3/4, 1 ton. 1999-02 gmc without c3 & denali. 3/4, 1 ton. 2wd, 2500. Helps align and secure your vehicle's bumper impact bar
This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors
MSRP $185.95
$123.00
MSRP $185.95
$123.00
